POER Wireless RF Programmable Underfloor Heating Thermostat

POER Wireless RF Programmable Underfloor Heating Thermostat

R2300,00

For Underfloor Heating Applications.

  • Wi-Fi Connectable with a special gateway
  • APP Monitoring
  • Energy Saving
  • Wireless two-way communication by RF
  • Auto, manual, holiday, ECO and override modes
  • Memory holds user programs even when power failed
  • Frost protection and valve protection function
  • Optimum start functionality for best energy saving
  • Indoor humidity sensor, display the humidity inside
  • Large LCD display with backlight
  • Battery powered with low battery indicator





Category:

Description

Wireless and 16A Current

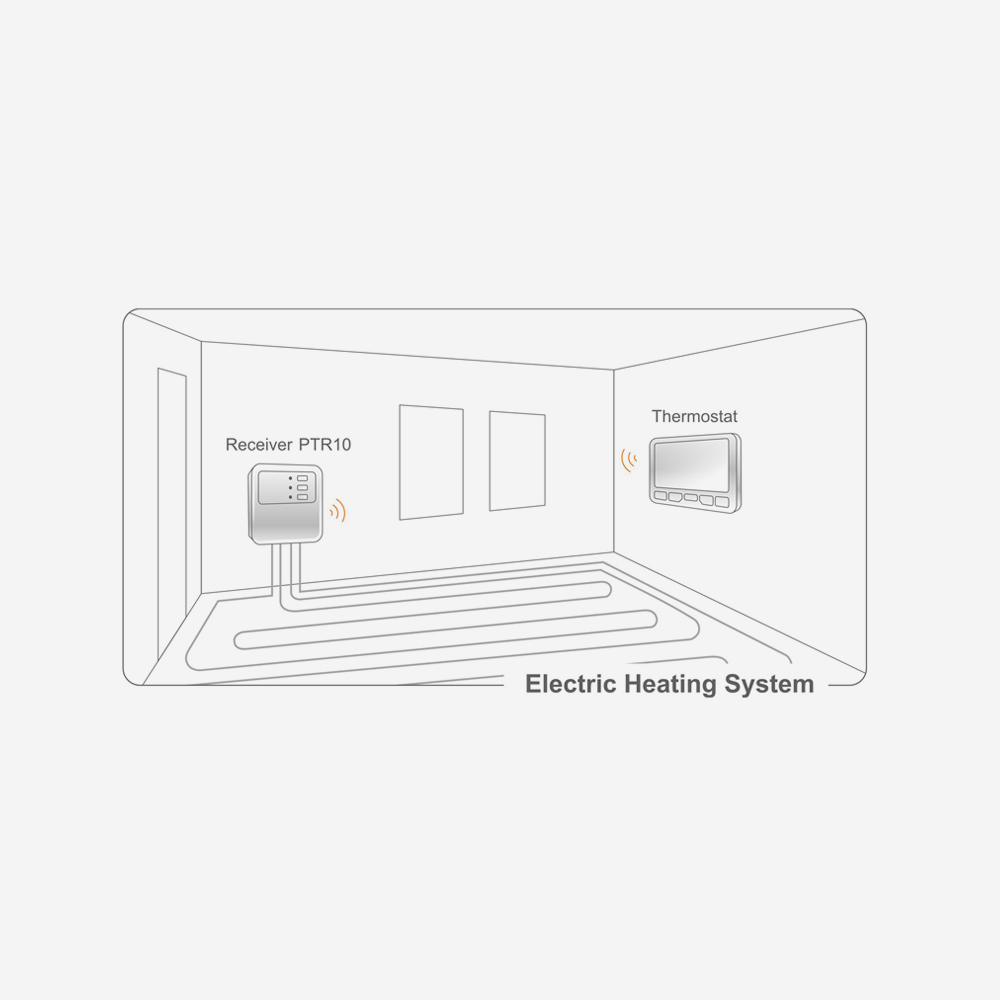

POER SMART RF thermostat innovatively separates the temperature control and the output part, and connects stably through RF communication. The location of the thermostat placement enables more choices. The thermostat PTC10 has a large 3.5-inch screen and beautiful buttons. The remote control room thermostat is driven by 2*AA batteries and can last for 1-2 years with the help of ultra-low-power MCU.

Stable & Comfortable RF Heating Controls

PTC10 remote control room thermostat contains a temperature sensor and a humidity sensor. The temperature sensor continuously detects the temperature in the room. If the temperature in the room is less than the set value, the thermostat will tell the actuator to start the wireless heating system or start other heat sources. When the temperature is reached, the heat source is turned off. In this way, the temperature in the room is continuously maintained comfortable and stable. In view of the actual temperature change, the deviation is corrected. We have added temperature deviation modification options. Users can modify the deviation value according to their requirements.

PID Control for User Option

In addition to the first control method, we have also developed a PID control method. The PID control method will calculate the best start and turn off time for the heat source according to the actual situation of the room to make the room temperature more stable and comfortable.

Temperature Control Hysteresis

POER wireless heat pump thermostat PTC10 temperature control hysteresis could be adjusted from 0.1℃ to 1.0℃
